Overview
With the Emissions Forecast chart, users can view actual and forecasted emission data. Data is sourced from Scenario Planning and displayed on an interactive chart.

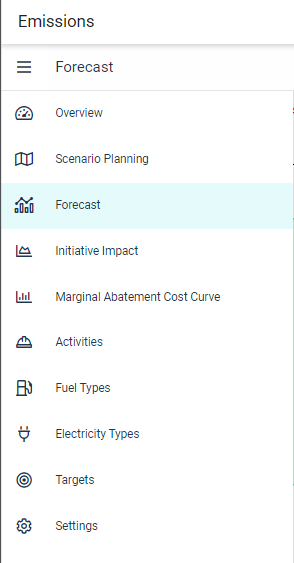

Navigate to Impact > Emissions, then click on the three-bar menu on the left-hand side, then click Forecast. |

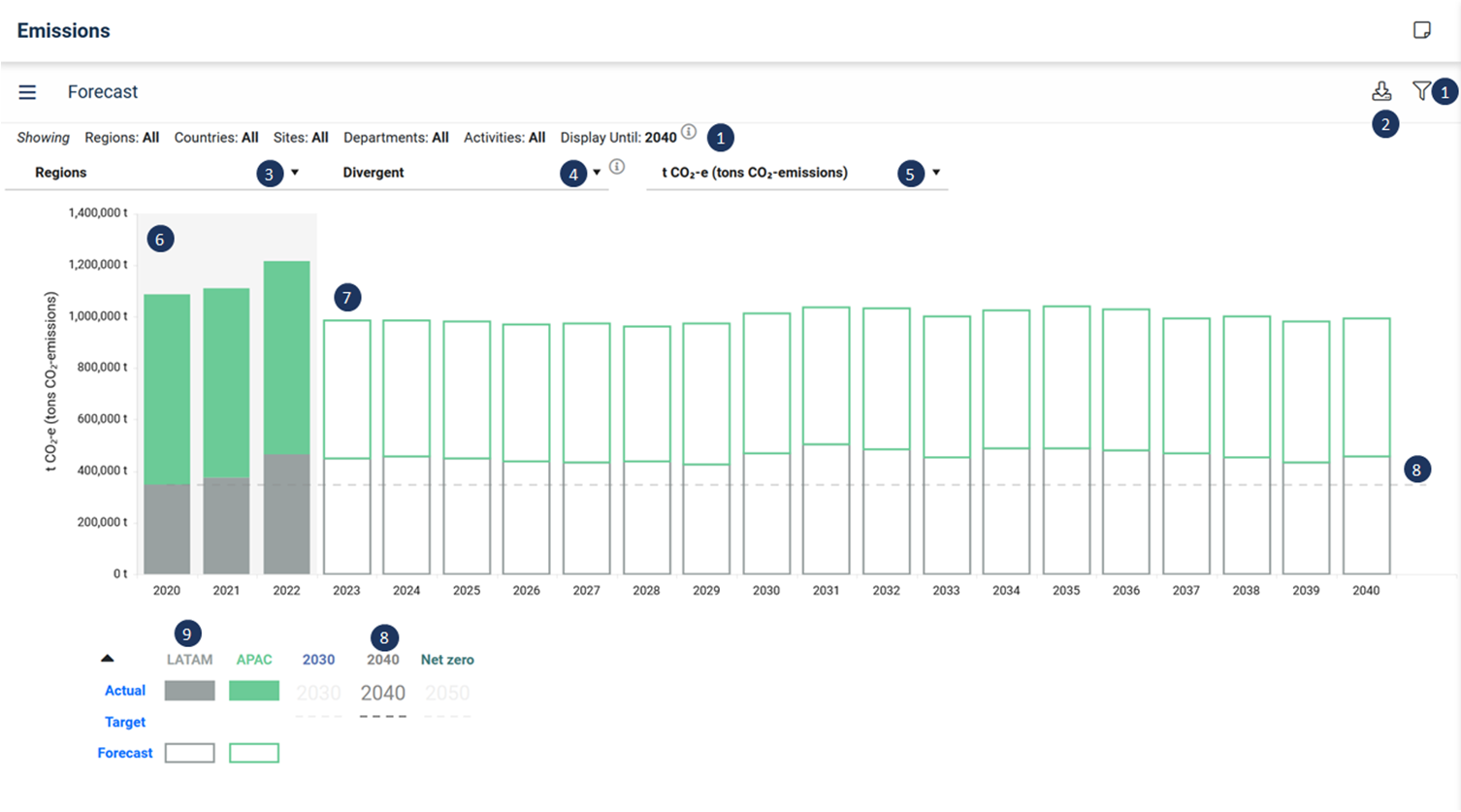

Viewing Forecast Chart
The emissions forecast chart is displayed with options to choose a scenario and filter data by Region/Country/Site and filter types.
 | Display the filter configuration. Click here or on the "Filter" icon to open the filter slide out. i.e. the Hierarch, Activities and Target Horizon |
 | Download the chart to a PDF document |
 | Choose a specific 'bucket' to view the data, Available buckets are Region, Country and Site |
 | Select the Scenario that you want to view |
 | Select the display factor |
 | Historical data is displayed on a grey background |
 | Forecast data is displayed on a white background |
 | Global target lines can be turned on in the legend. Site targets are displayed as solid bars in the "Site" bucket |
 | Chart components can be switched on/off in the legend |
 | Turn on chart values |
The grey background with solid bars depicts historical data while the white background with bar outlines shows forecasted data. This is the case in all buckets except for the "Site" bucket where solid bars are also used to show the site targets for a specific year.
 | Site targets for 2030 |
 | Site targets for 2040 |
Next Steps
To see the impact that your initiatives have on your forecasted emissions, view the Initiative Impact chart.
